| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS-500 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $1000.00 - $3000.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Output Signa: | RS-485, MODBUS Protocol | Range: | BOD 1.5 To 410mg/l Equiv KHP, COD 2.5 To 1000 Mg/l Equiv. KHP |
|---|---|---|---|
| Accuracy: | 0.01mg/L COD | Temperature Range: | +5 ~ 45°C |
| IP Grade: | IP68 | Calibration: | 1 Or 2 Point Calibration |
| Power Supply: | DC 12V +/-5%, Current <50mA (when There Is No Cleaning Brush) | Sensor Size: | 54*325.5 Mm |
| Cable Length: | Default 5 M | Housing Material: | SS316L |
| Highlight: | Cod Bod Tss Analyser,Small Cod Bod Tss Analyser,UV254 bod cod online analyzer |
||

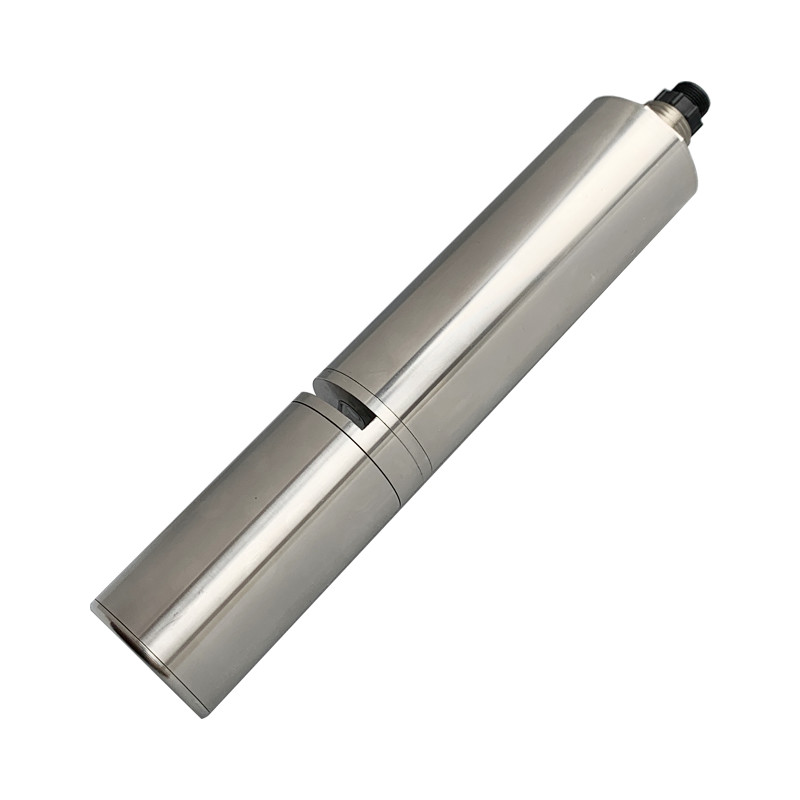

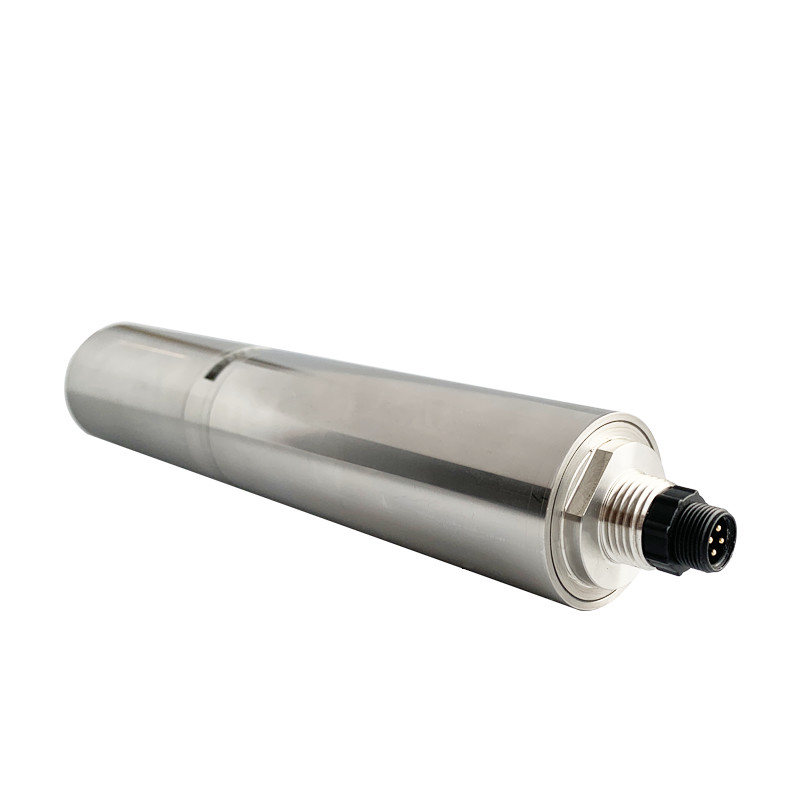

Factory China UV254 COD /BOD / TSS Sensor Chemical Oxygen Demand Meter
Measuring principle
Many organic substances dissolved in water absorb ultraviolet light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm. COD sensors use two light sources, one 254nm ultraviolet light and one 550nm infrared light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.
COD Sensor Feature
Digital sensor, RS-485 output, support MODBUS.
Can measure COD, BOD and temperature parameters.
No reagents, no pollution, more economical and environmentally friendly.
Small size and easy to install, water quality monitoring can be performed online.
It automatically compensates for turbidity interference and has excellent test performance.
Internal rotation cleaning brush for pipe self-cleaning and submersible self-cleaning
Technical parameters
|
Item |
Parameters |
|
Output signal |
Support RS-485, MODBUS protocol |
|
Range |
TOC 1.5 to 410mg/l equiv KHP, COD 2.5 to 1000 mg/l equiv. KHP |
|
Accuracy |
0.01mg/L COD |
|
Temperature range |
+5 ~ 45°C |
|
IP Grade |
IP68 |
|
Maximum pressure |
1 bar |
|
Calibration |
1 or 2 point COD calibration |
|
Power Supply |
DC 12V +/-5%, current <50mA (when there is no cleaning brush) |
|
Sensor Size |
54*325.5 mm |
|
Cable length |
5m (default) |
|
Housing Material |
SS316L |
