| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS525 |
| Minimum Order Quantity: | 0-100pcs |
| Price: | According to the specific quantity |
| Packaging Details: | carton packaging |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Range: | -999~999mV | Deepest Depth: | Underwater 30m |
|---|---|---|---|
| Protection Level: | IP68 | Maximum Operating Pressure: | 6bar |
| Output Signal: | RS-485, MODBUS Protocol | Power Information: | DC 5~12V, Current <50mA |
| Probe Cable Length: | 5 Meters (default), Can Be Customized | Housing Material: | POM |
| Assembly: | Input Type | Temperature Range: | 0~ 50°C |
| Highlight: | Sewage Testing Online ORP Sensor,Online ORP Sensor,orp ph probe 999mV |
||

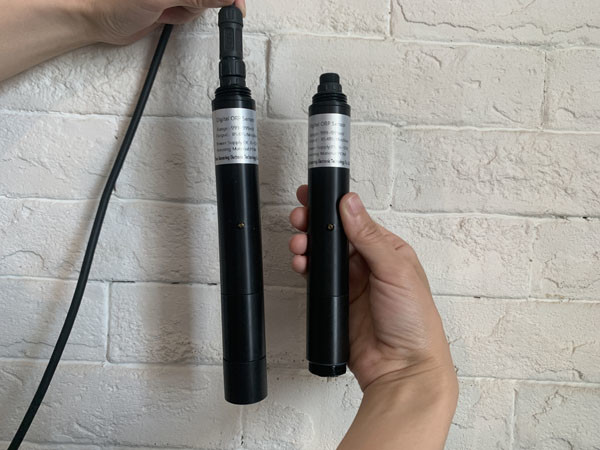

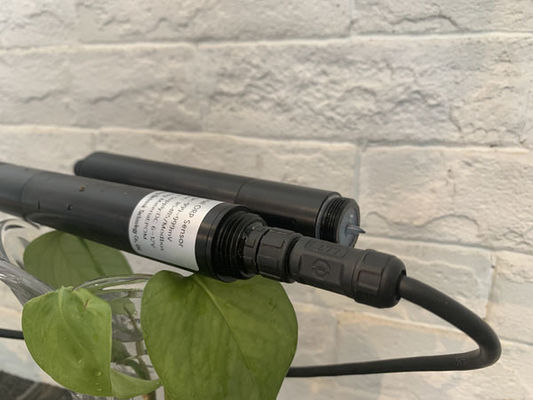

Sewage testing online ORP sensor water quality monitoring meter probe -999~999mV drinking water monitoring
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
China
|
|
Brand Name
|
Xi'an Desun
|
|
Range
|
-999~999mV
|
|
Deepest depth
|
Underwater 30m
|
|
Protection level
|
IP68
|
|
Maximum operating pressure
|
6bar
|
|
Output signal
|
RS-485, MODBUS protocol
|
|
Power information
|
DC 5~12V, current <50mA
|
|
Probe cable length
|
10 meters (default), can be customized
|
|
Housing material
|
POM
|
|
Assembly
|
Input type
|
|
Temperature range
|
0~ 50°C
|
Maintenance methods and common problems
Maintenance schedule and method
It is recommended to periodically calibrate or clean the sensor surface according to the actual application scenario.
| Maintenance tasks, | Recommended maintenance frequency |
| Calibrate the sensor (if required by the competent authority) | According to the maintenance schedule required by the competent authority |
Application examples of orp sensor
Xi'an Desun Uniwill Electronic Technology Co., Ltd (Hereinafter referred to as Disen Sensing Company) is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, R&D, sales and engineering services. Relying on Xi'an's rich high-tech resources, we have carried out technical cooperation with many universities and scientific research institutions, constantly breaking through technical barriers, improving product performance, and using leading technology to provide high-quality products for the water quality monitoring industry.
We launched a wireless water quality monitoring solution based on the current rapid development of the Internet of Things technology, combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.
