| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $360.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Measuring Range: | 0~20mg/L | Response Time: | 3 Seconds |
|---|---|---|---|
| Protection Level: | IP68 | Power Supply: | DC 6~12V |
| Product Material: | POM/SS316/Titanium | Power Consumption: | < 0.5 W |
| Calibration Method: | One Or Two-point Calibration | Accuracy: | 1% |
| Maximum Working Pressure: | 6bar | Fluorescent Cap Life: | 1 Year |
| Highlight: | Water Dissolved Oxygen Sensor Optical,Water Dissolved Oxygen Sensor groundwater monitoring,POM water quality probe |
||

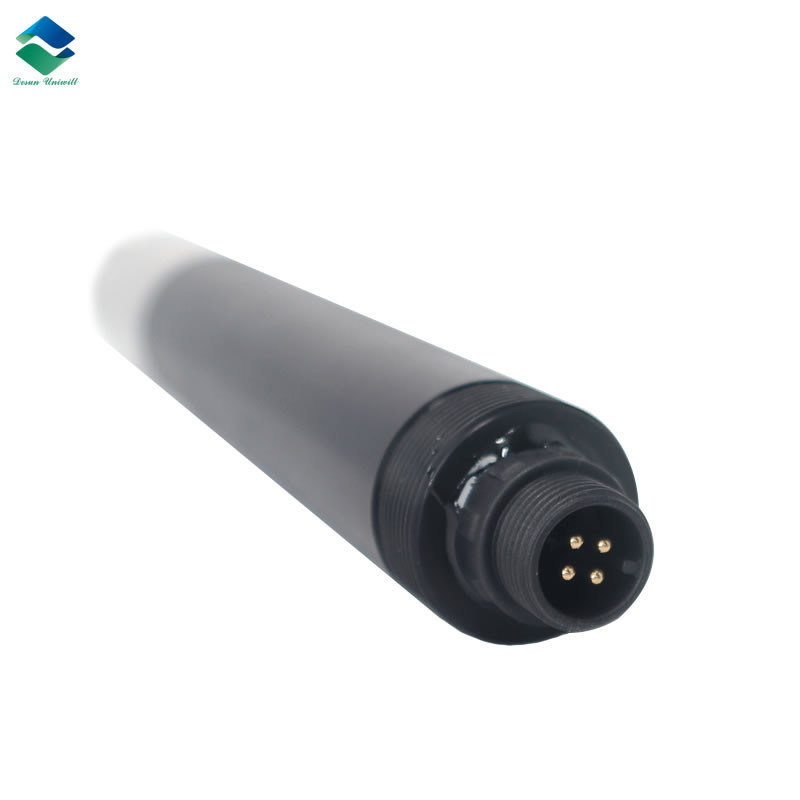

Easy Maintain And Install Dissolved Oxygen Meter Optical DO Sensor groundwater monitoring
Feature:
1. Large screen dot matrix LCD display, English menu operation.
2. Multi parameter simultaneous display: oxygen value, temperature, output current, alarm point and so on. Visually readable and with range overrun hints.
3. The alarm status is displayed on the screen, and the output of the switch ON signal can be simultaneously connected.
4. Communication function (optional): RS-485 communication interface (MODBUS Protocol Part compatible), 4-20 mA current output corresponding to the DO value can be arbitrarily set.
5. Arbitrary setting function of hysteresis, Avoid frequent action of switch and relay.
6. Watchdog function: Make sure the instrument does not crash.
7. The core components come from famous foreign brands.
Technical Parameters
|
Item |
Parameters |
|
Model |
DS380 |
|
Principle |
Fluorescence analysis method |
|
Measuring range |
0~20mg/L or 0-200% saturation |
|
Response time |
3 sec |
|
Accuracy |
1% |
|
Protection level |
IP68 |
|
Installation |
Submersible |
|
Temperature sensor |
NTC |
|
Temperature range |
0~50°C |
|
Temperature accuracy |
±0.2°C |
|
Output |
Support RS-485, MODBUS protocol |
|
Power supply |
DC 6~12V, current <50mA |
|
Size |
Φ26*155 mm |
|
Probe cable length |
Default 5 m, customized 10m, 15 m and 30 m cable |
|
Fluorescent cap life |
1 year |
|
Maximum working pressure |
3bar |
|
Housing material |
SS316/Titanium alloy |
FAQ
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
Package
