| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $360.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Measuring Range: | 0~20mg/L | Response Time: | 3 Seconds |
|---|---|---|---|
| Protection Level: | IP68 | Power Supply: | DC 6~12V |
| Product Material: | POM/SS316/Titanium | Power Consumption: | < 0.5 W |
| Calibration Method: | One Or Two-point Calibration | Accuracy: | 1% |
| Maximum Working Pressure: | 6bar | Fluorescent Cap Life: | 1 Year |
| Highlight: | Rs485 Water Do Meter,luminescent dissolved oxygen probe,optical dissolved oxygen meter |
||

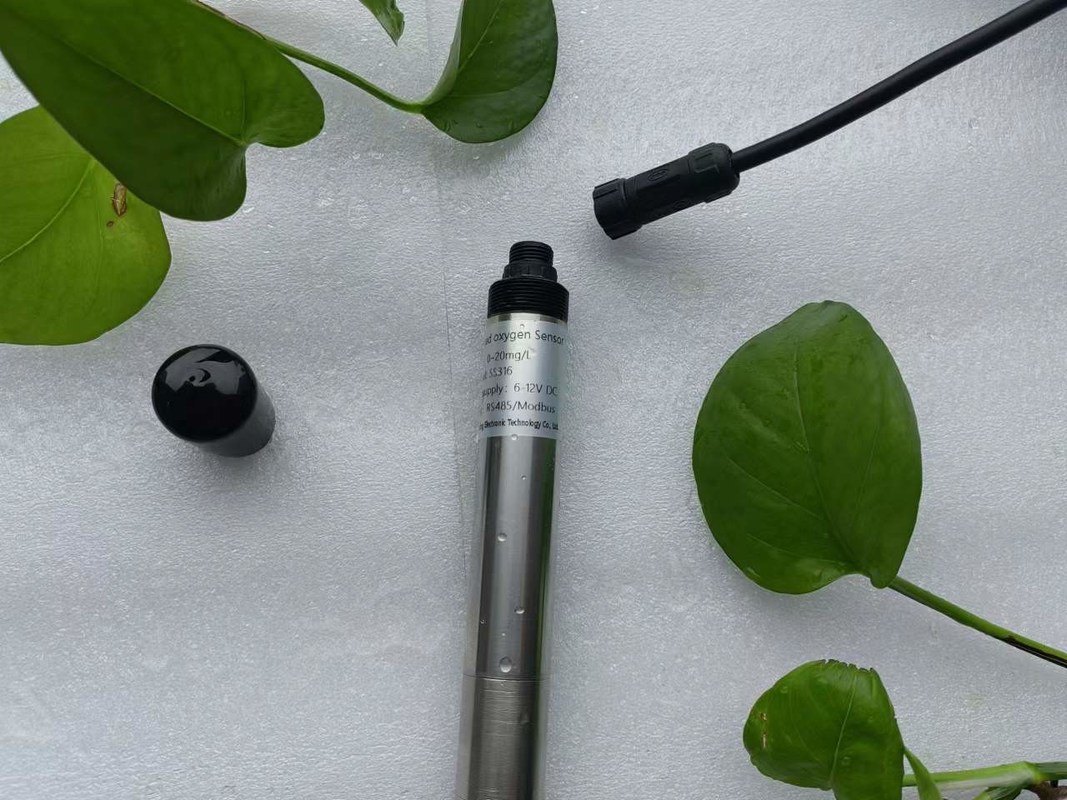

Optical Rs485 Water Do Sensor Luminescent Titanium Alloy Calibration Method
Breif Introduction:
Dissolved oxygen sensor is widely used in wastewater treatment, purified water, circulating water, boiler water and other systems, as well as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceutical, fermentation, chemical aquaculture and tap water and other solutions of the continuous monitoring of dissolved oxygen value.
1.Dissolved oxygen sensor is a new generation of intelligent water quality detection digital sensor independently developed by Desun Uniwill.
2.Data viewing, debugging and maintenance can be carried out through mobile APP or computer.
3.Dissolved oxygen on-line detector has the advantages of simple maintenance, high stability, superior repeatability and multi-function.
4.It can accurately measure DO value and temperature value in solution.
Technical Parameters
| Item | Parameters |
| Model | DS380 |
| Principle | Fluorescence analysis method |
| Measuring range | 0~20mg/L or 0-200% saturation |
| Response time | 3 sec |
| Accuracy | 1% |
| Protection level | IP68 |
| Installation | Submersible |
| Temperature sensor | NTC |
| Temperature range | 0~50°C |
| Temperature accuracy | ±0.2°C |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 6~12V, current <50mA |
| Size | Φ26*155 mm |
| Probe cable length | Default 5 m, customized 10m, 15 m and 30 m cable |
| Fluorescent cap life | 1 year |
| Maximum working pressure | 6bar |
| product material | POM/SS316/Titanium alloy |
| Calibration method | One or Two-point calibration |
| Power consumption | < 0.5 W |
