| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS2100 |
| Minimum Order Quantity: | 1 |
| Price: | Determined by the number of specific orders |
| Packaging Details: | Carton packaging |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 |
| Model: | DS2100 | Measure Range: | Customized On Demand |
|---|---|---|---|
| Material: | POM Materials Can Be Customised | Output Signal: | RS485 |
| IP Grade: | IP68 | Deepest Depth: | 10M |
| Measurement Parameters: | Optional | ||
| Highlight: | Digital Multiparameter Water Quality Probe,Multiparameter Water Quality Probe IP68,multi parameter sensor IP68 |
||

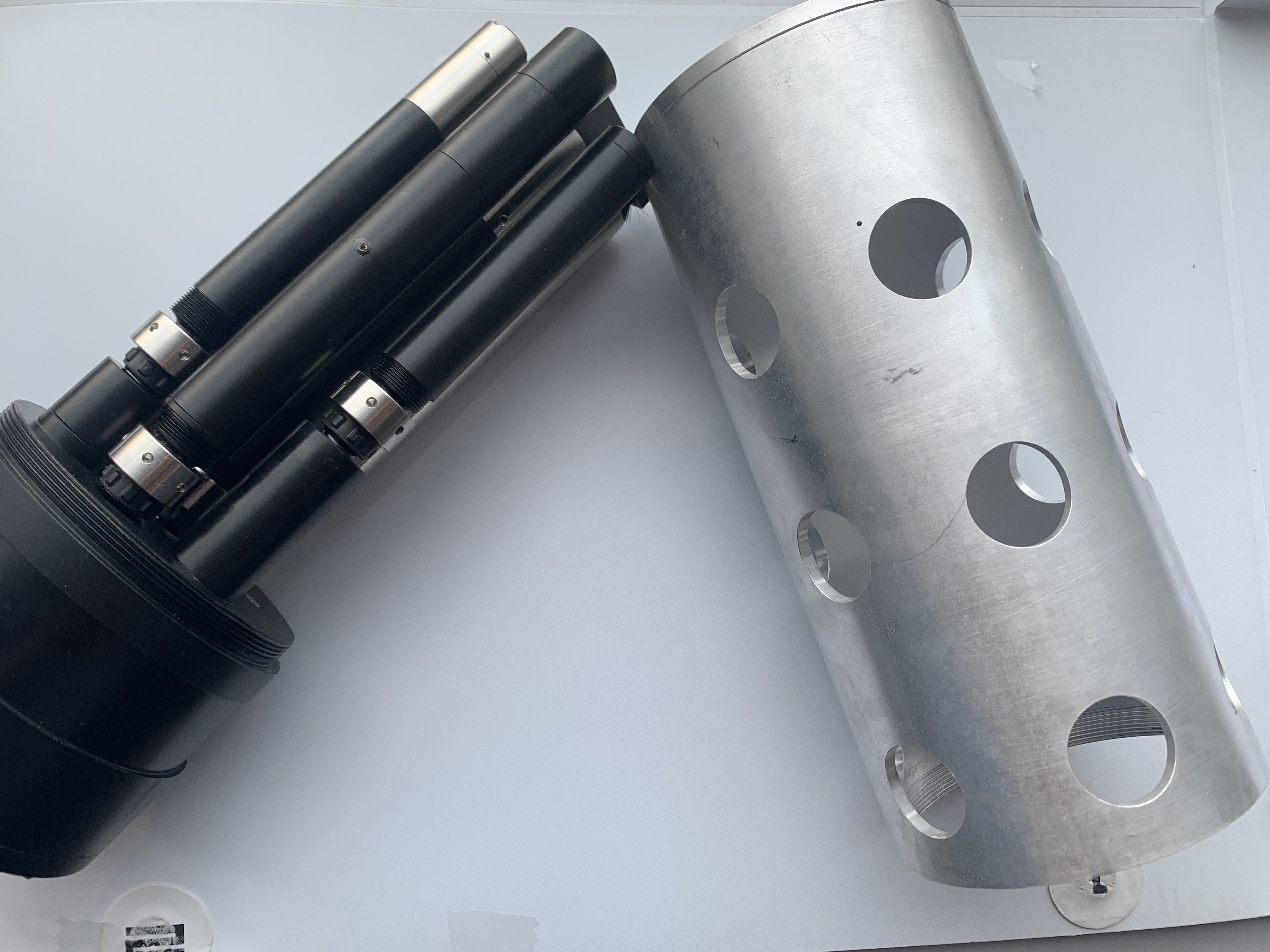

DS2100 Online Ocean Water Quality Monitoring Multi-parameter Sensor All-in-one Water Quality Sensor
Our company has launched the latest online multi-parameter (all-in-one) water quality sensor with integrated design, which is reliable and easy to use. A maximum of 6 digital sensors can be connected at the same time. Fluorescent dissolved oxygen sensor, four- electrode conductivity sensor, turbidity sensor, digital pH electrode, blue-green algae and chlorophyll sensor can be selected at the same time. RS485 output, equipped with automatic cleaning device, greatly reducing maintenance costs, each sensor is equipped with quick-plug waterproof connector. Compared with traditional shore-type meters, installation is more convenient and can more directly reflect the real data on the spot.
Digital sensor, RS485 output, support MODBUS
All calibration parameters are stored in the sensor, and each probe is equipped with a waterproof connector, which can be easily replaced.
Equipped with an automatic cleaning device, it can effectively remove the dirt on the sensor surface, prevent the growth of microorganisms, and be more accurate and less maintenance.
Optional fluorescent dissolved oxygen, four-electrode conductivity, turbidity, digital pH, blue-green algae, and chlorophyll sensors are suitable for long-term online monitoring.
Integrated design, can connect 11 probes at the same time, measure 7 parameters.
|
Production Name
|
Specifications
|
||
|
Optical dissolved
oxygen probe
|
Range
|
0-20mg/L or 0-200% saturation
|
|
|
Precision
|
±0.3mg/L
|
||
|
Resolution
|
0.01mg/L
|
||
|
|
Range
|
0~1000 NTU
|
|
|
Precision
|
<5% or 0.3NTU
|
||
|
Resolution
|
0.1NTU
|
||
|
|
Range
|
1uS/cm-200mS/cm
|
1uS/cm-100mS/cm
|
|
Precision
|
1% FS
|
||
|
Resolution
|
0-1000uS/cm: 0.1uS/cm;
1mS/cm-100mS/cm: 0.1mS/cm
|
||
|
|
Range
|
0~400 ug/L or 0~100RF
|
|
|
The detection limit
|
0.1 μg/L
|
||
|
Resolution
|
0.1 μg/L or 0.1% RFU
|
||
|
Digital pH probe
|
Range
|
0-14pH
|
|
|
Precision
|
±0.1pH
|
||
|
Resolution
|
0.01
|
||
|
Digital ORP probe
|
Range
|
-999~999mV
|
|
|
Precision
|
±20mV
|
||
|
Resolution
|
1mV
|
||
|
Oil in water water
|
Range
|
0-20ppm or 0-50ppm
|
|
|
Precision
|
1%
|
||
|
Resolution
|
0.1ppm
|
||
|
Ammonia nitrogen probe
|
Range
|
0~1000mg/L
|
|
|
Precision
|
±10%
|
||
|
Resolution
|
0.1mg/L
|
||
|
other information |
Operating temperature
|
0~50°C
|
|
|
Output
|
RS485
|
||
|
Automatic cleaning brush
|
Yes / Optional
|
||
|
powered by
|
12Vdc±5%
|
||
|
Current
|
100mA
|
||
|
Protection level
|
IP68
|
||
|
Cable length
|
10m, 5m, 15m and 30
|
||
| Name | Description |
| Online parameter (all-in-one) water quality sensor | Includes fluorescent dissolved oxygen, four- electrode conductivity, turbidity, digital pH, temperature, and self-cleaning brushes. 12V power supply, IP68 waterproof. 1 RS485 output. |
| On-line multi-probe fluorescence dissolved oxygen sensor | Range 0 ~ 20mg / L or 0 ~ 200% saturation, 485 interface, waterproof connector, IP68 |
| On-line multi-probe four-electrode conductivity sensor |
Range: 1μs / cm ~ 200ms / cm, accuracy: <1%, electrode material: nickel, sheath material: PEEK, operating temperature: 0 ~ 50 ℃, 485 interface , Waterproof connector, IP68 |
| On-line multi-probe flat head sensor turbidity | Optical fiber turbidity, range: 0.1 ~ 1000NTU, accuracy: <5% or 0.3NTU, response time: <2 sec, sheath material: 316L, operating temperature: 0 ~ 50 ℃, 485 interface, waterproof connector, IP68 |
| Online multi-probe digital pH sensor | Online industrial pH electrode, RS485 output, 0-12, waterproof connector, IP68 |
| Online multi-probe automatic cleaning brush | Automatic cleaning brush kit, including motor brush and positioning device, 2 sets of parts, waterproof connector, IP68 |
| Multi-probe sonde |
Can be connected to pH, four-electrode conductivity, optical dissolved oxygen, turbidity, including protective cover, 485 interface, waterproof connector, IP68 |
service
* Standardized workshop and process
* Strict professional quality inspection
* Return is supported if the product is unqualified.
* Fast delivery
* Warranty for 1 years
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
